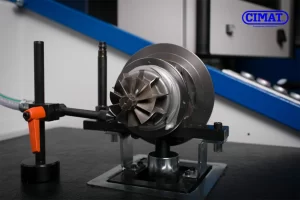

CMT TR balancing machine
CMT TR balancing machine

CMT-TR

Low-speed core balancing machine

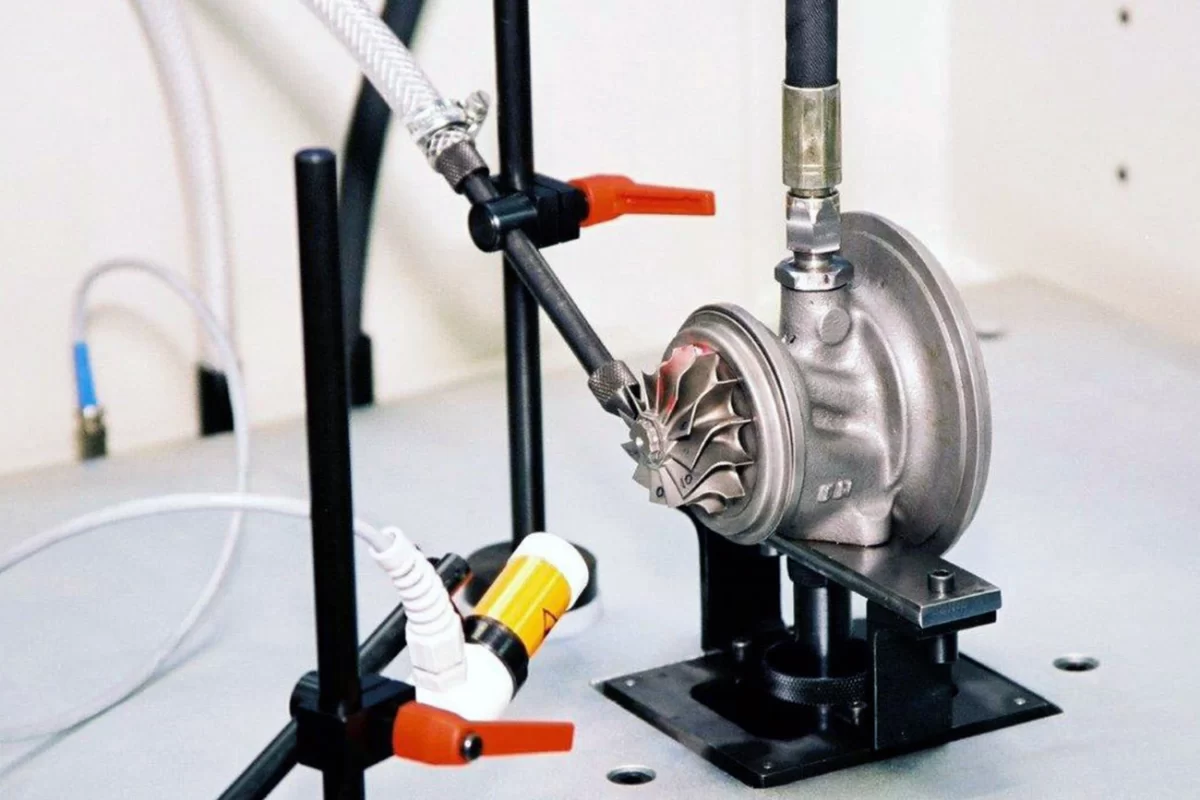

„CMT-TR” is a slow-speed core balancing machine that is dedicated for the slow-speed core balancing of turbocharger of commercial vehicles, off-highway vehicles, agricultural and marine applications.

SLOW-SPEED CORE BALANCING MACHINE

DescriptionParameter
Maximum core mass16 kg
Unit of measurement[mg], [gmm]
Measurement uncertainty0,02 gmm – 0,3 gmm for light-duty truck turbocharger core
0,15 gmm – 0,9 gmm for heavy-duty truck turbocharger core
Balancing speedUp to 40 000 rpm

GENERAL DATA

DescriptionParameter
Oil filtrationMultistage
Safety guardingC type with a guard locking
Diameter of air supply pipe0.25”
Compressed air pressure8 bar
Air tank capacity500 l
Mass of the machine350 kg
Power supply230 V, 50/60 Hz
Dimensions of the machine1450 mm x 1000 mm x 1750 (2000) mm
